Prezzo: € 775,90 +IVA
Disponibilità: 0

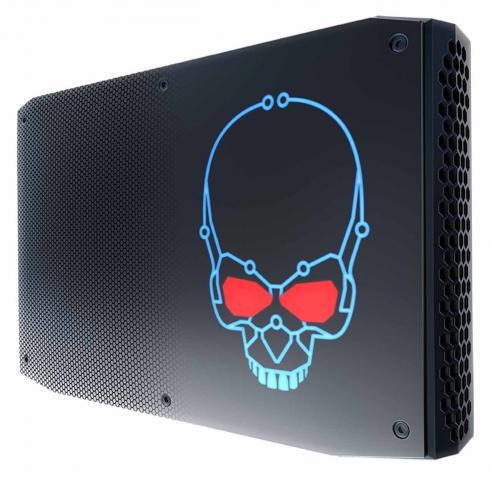

Product Collection Intel® NUC Kit with 8th Generation Intel® Core™ Processors
Code Name Products formerly HADES CANYON
Status Launched
Launch Date Q1'18
Board Form Factor UCFF (5.5" x 8")
Socket Soldered-down BGA
Internal Drive Form Factor M.2 SSD
# of Internal Drives Supported 2
Lithography 14 nm
TDP 100 W
DC Input Voltage Supported 19 VDC
Recommended Customer Price $908.00 - $910.00
Processor Included Intel® Core™ i7-8809G Processor with Radeon™ RX Vega M GH graphics (8M Cache, up to 4.20 GHz)
Warranty Period 3 yrs
Supplemental Information
Embedded Options Available No
Datasheet View now
Description Other features: Includes 2x Thunderbolt 3 (40Gbps) via rear USB-C ports, SDXC card slot and front USB-A and USB-C ports w/ USB 3.1 Gen 2
Memory & Storage
Max Memory Size (dependent on memory type) 32 GB
Memory Types DDR4-2400+ 1.2V SO-DIMM
Max # of Memory Channels 2
Max Memory Bandwidth 38.4 GB/s
Max # of DIMMs 2
ECC Memory Supported ‡ No
Processor Graphics
Integrated Graphics ‡ Yes
Graphics Output 2x Mini-DP 1.2, 2x Thunderbolt 3, F+R HDMI 2.0a
# of Displays Supported ‡ 6
Discrete Graphics Radeon™ RX Vega M GH graphics
Expansion Options
PCI Express Revision Gen3
PCI Express Configurations ‡ Dual M.2 slots with PCIe x4 lanes
Removable Memory Card Slot SDXC with UHS-I support
M.2 Card Slot (wireless) 2230
M.2 Card Slot (storage) 22x42/80, 22x80
I/O Specifications
# of USB Ports 13
USB Configuration F: USB3, 2x USB 3.1g2 (Type A and C); R: 4x USB3, 2x Thunderbolt3 (USB3.1g2); INT: 2x USB2, 2x USB3
USB Revision 2.0, 3.0, 3.1 Gen2
USB 2.0 Configuration (External + Internal) 0 + 2
USB 3.0 Configuration (External + Internal) 1F, 4R, 2i
Total # of SATA Ports 2
Max # of SATA 6.0 Gb/s Ports 2
RAID Configuration 2x M.2 SATA/PCIe SSD (RAID-0 RAID-1)
Audio (back channel + front channel) 7.1 digital; L+R+mic (F); L+R+TOSLINK (R)
Integrated LAN 2x 10/100/1000
Integrated Wireless‡ Intel® Wireless-AC 8265 + Bluetooth 4.2
Integrated Bluetooth Yes
Consumer Infrared Rx Sensor Yes
S/PDIF Out Connector TOSLINK
Additional Headers CEC, 2x USB2.0, 2x USB 3.0, FRONT_PANEL
# of Thunderbolt™ 3 Ports 2
Package Specifications
Low Halogen Options Available See MDDS
Advanced Technologies
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® vPro™ Technology ‡ No
TPM No
Intel® HD Audio Technology Yes
Intel® Rapid Storage Technology Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Platform Trust Technology (Intel® PTT) Yes
Security & Reliability
Intel® AES New Instructions Yes
